Stabila LAR300 Laser Level 7-Piece Set Plus Rechargable Battery Kit 2 (Standard Receiver)

Stabila LAR300 Laser Level 7-Piece Set Plus Rechargable Battery Kit 2 (Standard Receiver)

(LAR 300S)

Regular price €999.00EX VAT (€1,228.77 INC VAT)
Regular price WAS €1,095.00 EX VAT
Sale price NOW €999.00EX VAT (€1,228.77 INC VAT)
YOU SAVE €96.00 (9%) Sold out

Extremely tough and accurate – even at the greatest of distances

Extremely tough thanks to the STABILA PROTECTOR system. Extremely simple operation. High-performance receiver – extremely large working area of up to 800 m in diameter. Deviations from the reference height can be read directly from the receiver display. Waterproof and dustproof (IP 65).



Full Description

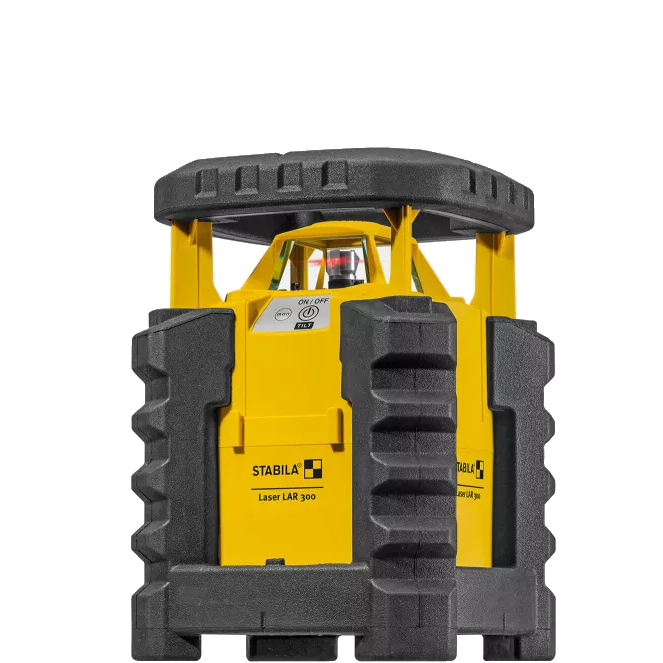

The LAR 300 rotation laser delivers everything you need to simply work efficiently. This high-quality product is the ideal partner for precise horizontal levelling work in outdoor applications. The laser is impressively easy to operate and, when used together with the receiver, allows tasks to be carried out rapidly and reliably within a working area of up to 800 m. Thanks to the integrated protection systems, nothing can stop this laser from doing its job – whether it is dropped or exposed to rain or dust. Typically STABILA – because lasting precision is the crucial factor.

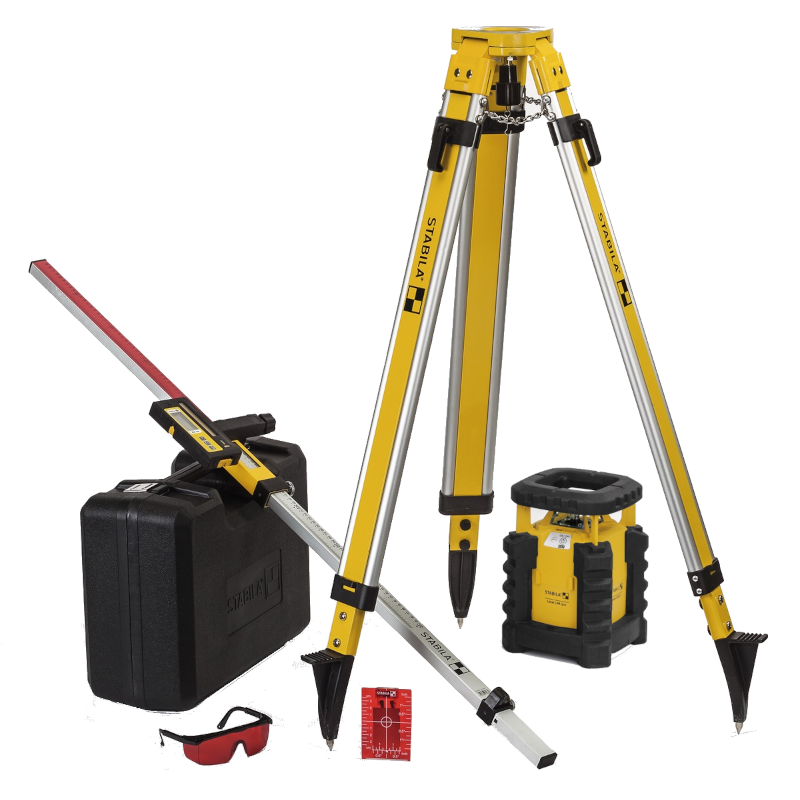

Kit Includes

  • LAR300 Laser

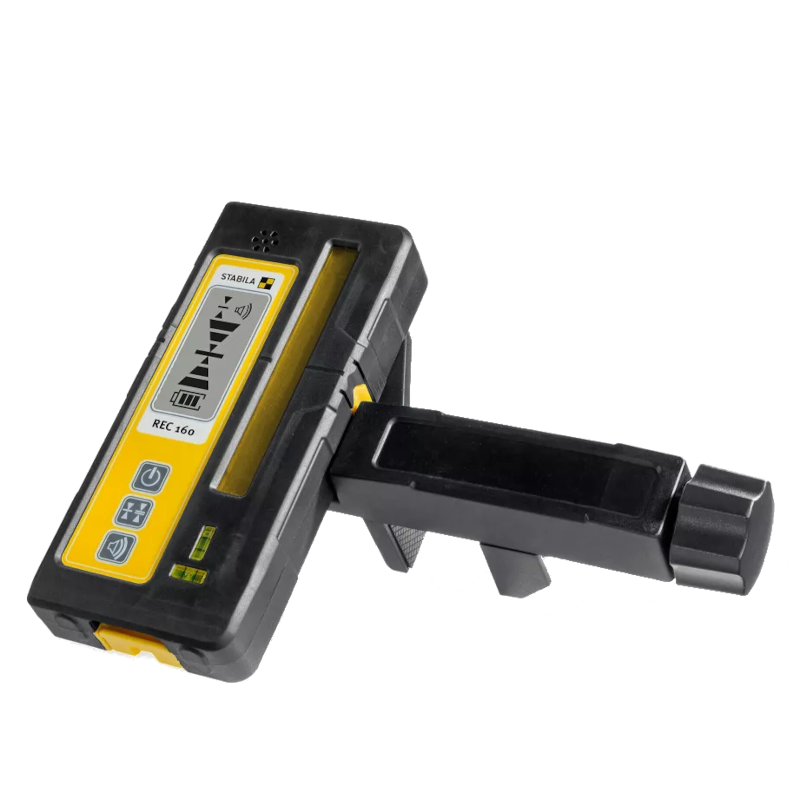

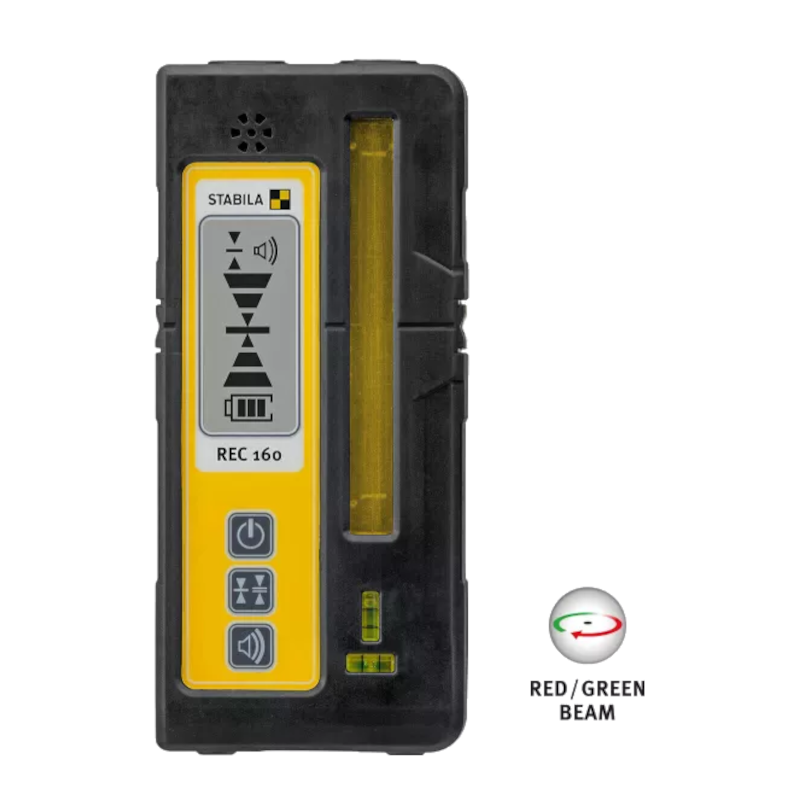

  • REC 160 RG Analog receiver
  • BST-S construction tripod
    Aluminium construction tripod for use outdoors. Tripod legs have spikes to ensure good stability. Rapid locking mechanism for aligning the tripod quickly, even on uneven ground. Spread stopper with high-quality chain. Carry pouch for easy transport. Height-adjustable: 100 cm to 160 cm. 5/8“ threaded screw
  • Staff - NL levelling rod
    Anodised aluminium levelling rod for use when levelling with a laser and receiver over great distances. Measuring rod with adjustment sliders for quick and trouble-free height determination. Deviations of ± 50 cm from the reference plane can be read quickly and easily (reference height approx. 80–190 cm). Printed scale in mm. Extendable up to 240 cm (transport height: 130 cm).
  • Target plate
    Target plate with magnetic holder and cross-hair for aligning the laser vertically and horizontally with a target point. For suspended ceilings, the target plate can be attached to metal rails with the magnetic holder. Improves the visibility of the laser beam.
  • LB laser goggles
    Laser goggles increase the visibility of the laser beam (by up to 50%). No protective laser goggles.

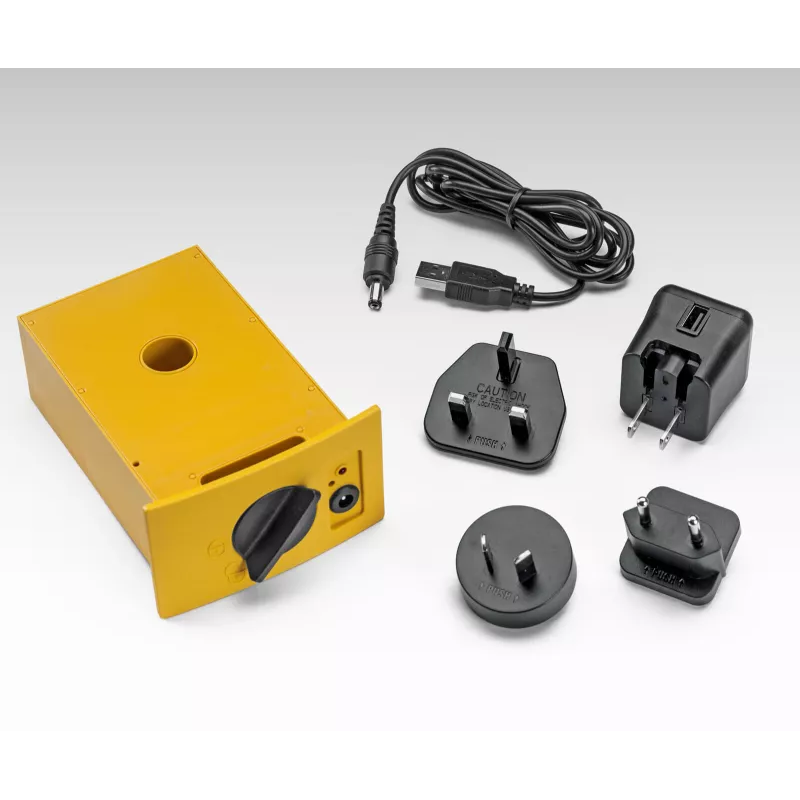

  • LAR350 Li-ion rechargeable battery unit
    Allows the unit to charge while working – the laser can be used at any time. High-performance lithium-ion rechargeable battery for particularly long periods of work — operating time of approx. 60 hours from one battery charge. Fast charging — ready in around 8 hours. The battery is 80% charged after approx. 4 hours. Mains adapter with 4 country-specific interchangeable adapters: approved for use in the European Union, the USA, Canada, Australia and New Zealand.
  • Hard carry case

Key Features

Laser

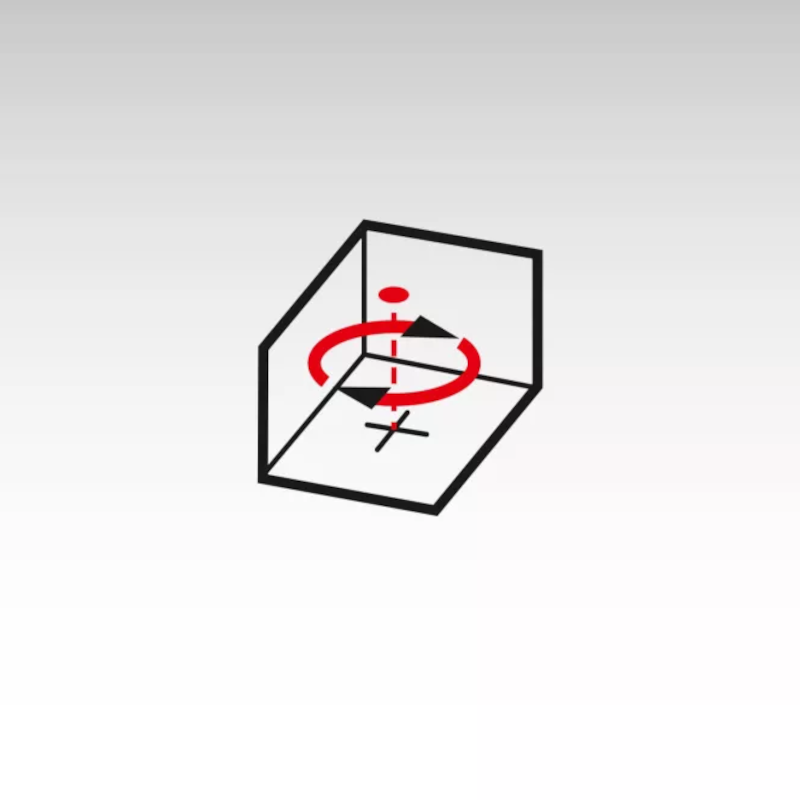

  • Fully automatic motor-driven rotation laser for horizontal applications – ready for use straight away thanks to fast self-levelling within 10 seconds. Quality and precision, made in Germany.

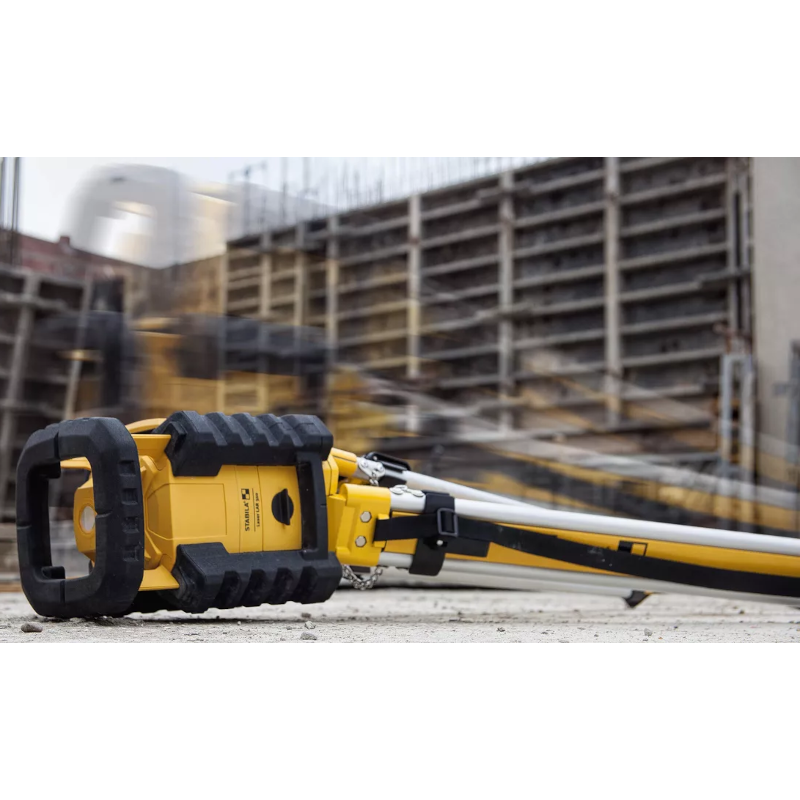

  • Extremely tough thanks to the STABILA PROTECTOR system – perfect protection, even when the laser is dropped from a tripod at a height of up to 1.80 m: just set up the tripod again, switch on and carry on measuring.

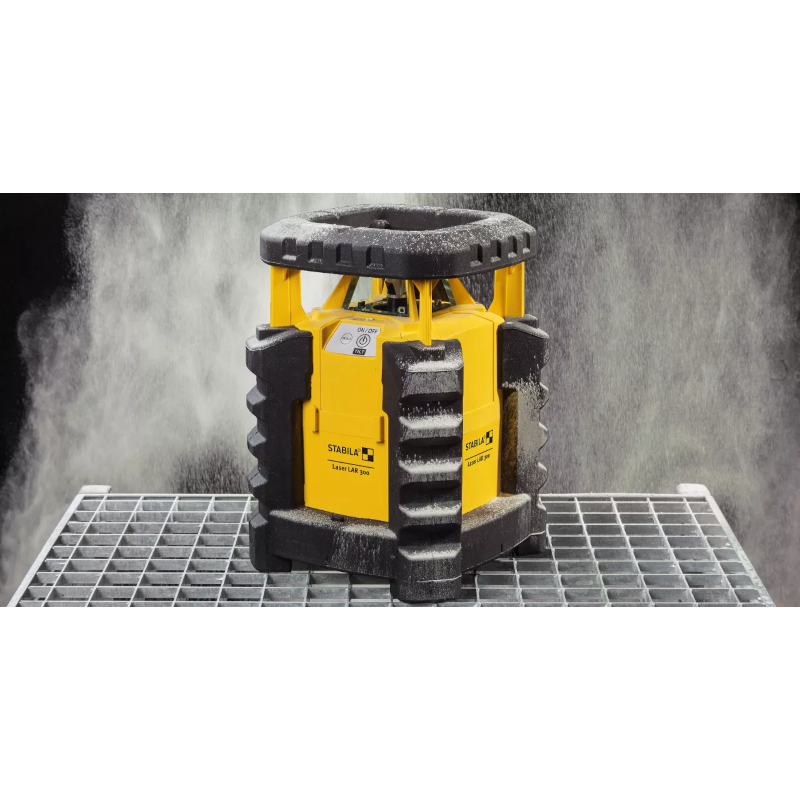

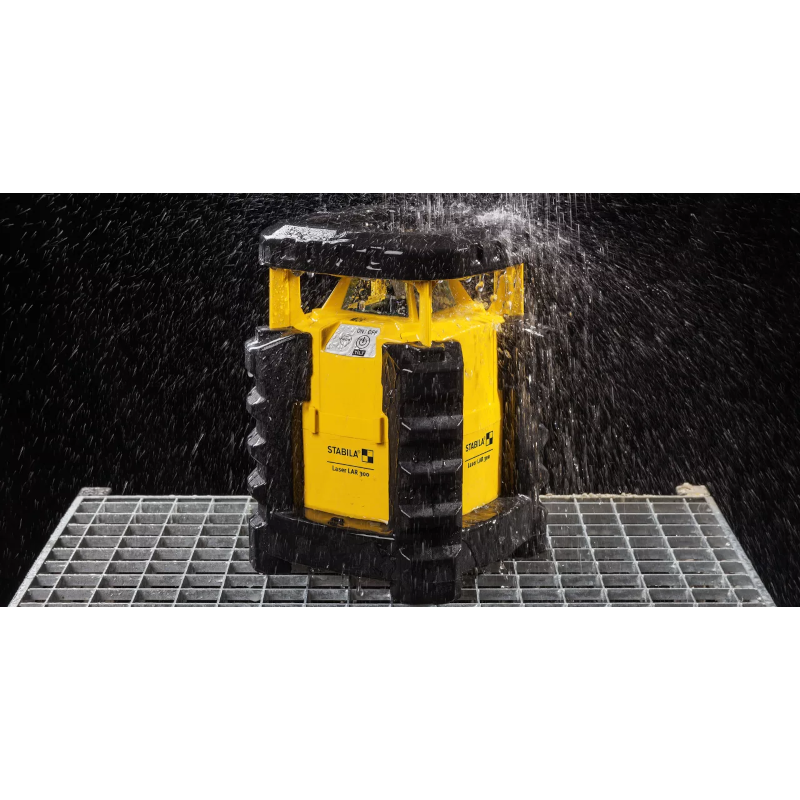

  • Waterproof and dustproof in accordance with protection class IP 65.
  • Resistant to heat and cold from -10°C to +60°C.
  • Exceptionally easy to operate at just the touch of a button.
  • Large working area with set receiver – up to 800 m diameter.
  • Correct heights quickly – direct reading of deviations from the reference plane on the receiver display with millimetre accuracy.
  • 5/8“ thread for attaching to a tripod.
  • Carrying case for easy transport.
  • Compatible with commercially available machine controllers.

Receiver

  • Laser receiver for accurately determining the beam position of rotation lasers with red or green laser diodes – even over large distances.
  • Visual display: Arrow symbols on the display indicate the position of the receiver relative to the reference plane of the laser.
  • Acoustic guidance can be activated with beeping tones for which the volume can be set.
  • Two sensitivity levels can be set for application-oriented work – “fine grade” with a sensitivity of ± 1 mm or “coarse grade” with a sensitivity of ± 3 mm.
  • Waterproof and dustproof in accordance with protection class IP 66.
  • Holder for attaching to levelling rods.
  • Battery status display.
  • Height of receiving area: 80 mm.
  • Battery life: 24 hours.

Specification

  • Laser class: 2
  • Output: < 1 mW
  • Laser wavelength: 635 nm
  • Self-levelling range: +/-5°
  • Levelling accuracy: +/-0.10 mm/m
  • Diameter of working area for set receiver: 800 m
  • Operating life: 80 h
  • Battery type: D
  • Protection class: IP 65
  • Tripod connection: 5/8"

Additional Info

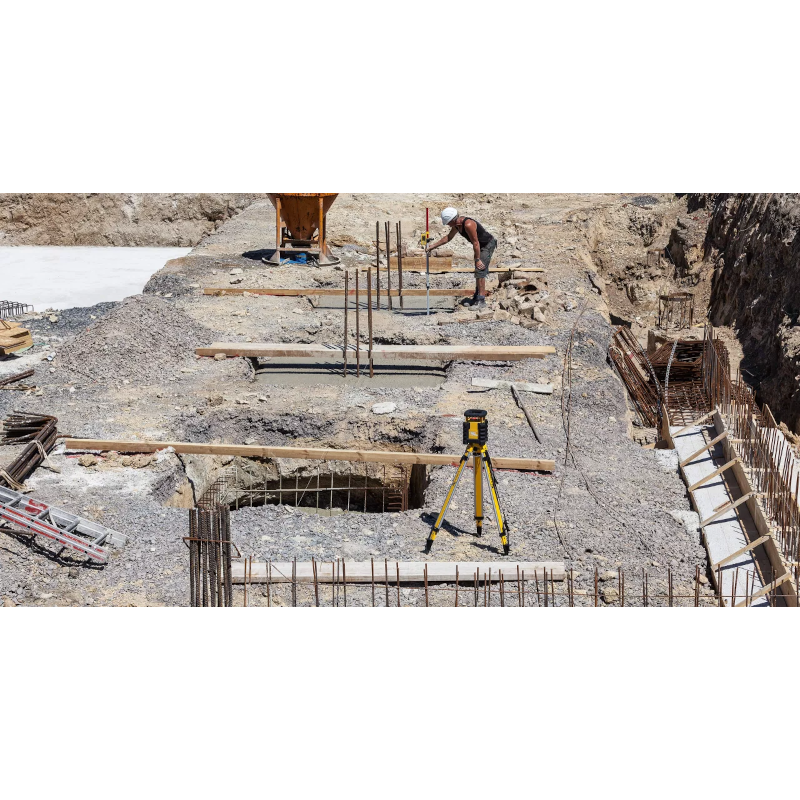

Application examples

  • In bricklaying – creating the levelling layer.

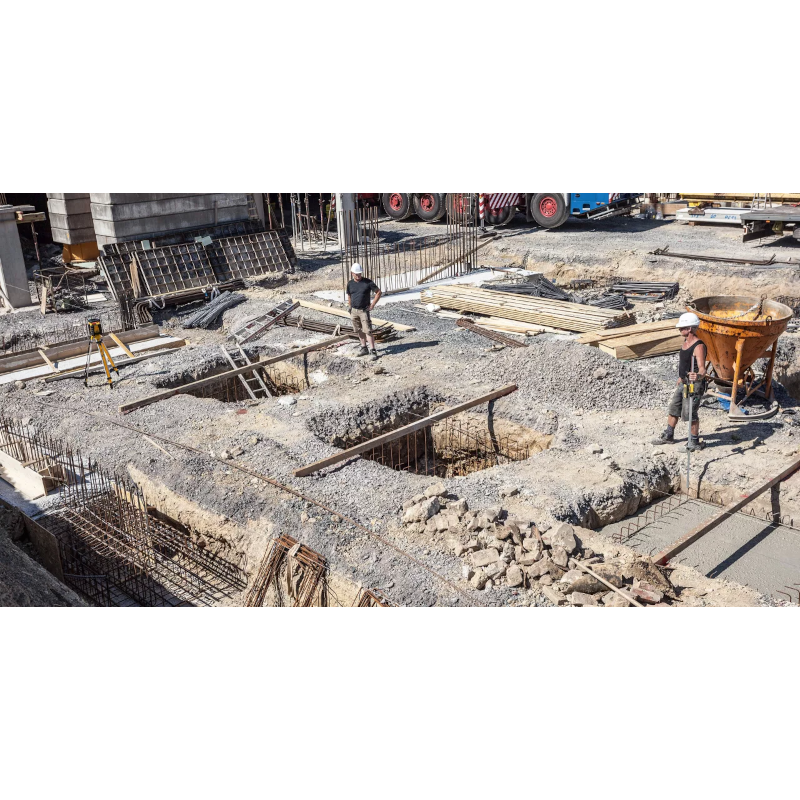

  • In reinforced concrete construction – concreting foundations.
  • In carpentry and wood construction – adjusting the height of the ring beam.
  • In civil engineering and pipeline construction – for example, trenching.
  • In gardening and landscaping work – laying out garden areas, paths and paving.
