Stabila LAR160 Laser Level 7-Piece Set Plus Rechargable Battery Kit 1 (Standard Receiver)

Stabila LAR160 Laser Level 7-Piece Set Plus Rechargable Battery Kit 1 (Standard Receiver)

(LAR 160)

Regular price €695.00EX VAT (€854.85 INC VAT)
Regular price WAS €795.00 EX VAT
Sale price NOW €695.00EX VAT (€854.85 INC VAT)
YOU SAVE €100.00 (13%) Sold out

Simply powerful – maximum precision over large distances - Includes Standard Receiver and Tripod.

Working to a high degree of precision – levelling accuracy of ± 0.1 mm/m. High-performance receiver – large working area of up to 600 m in diameter. Weatherproof – waterproof and dustproof in accordance with protection class IP 65.

Full Description

Are you tasked with horizontal and vertical levelling for major outdoor projects? Do you need to work precisely and avoid costly measurement errors and rework? Then the LAR 160 from STABILA is the right rotation laser for you. It is quick to set up, easy to operate and also suitable for use over large distances when linked to a receiver. All in all, it is a high-quality product that can endure the elements and deliver precise results – exactly what you need.

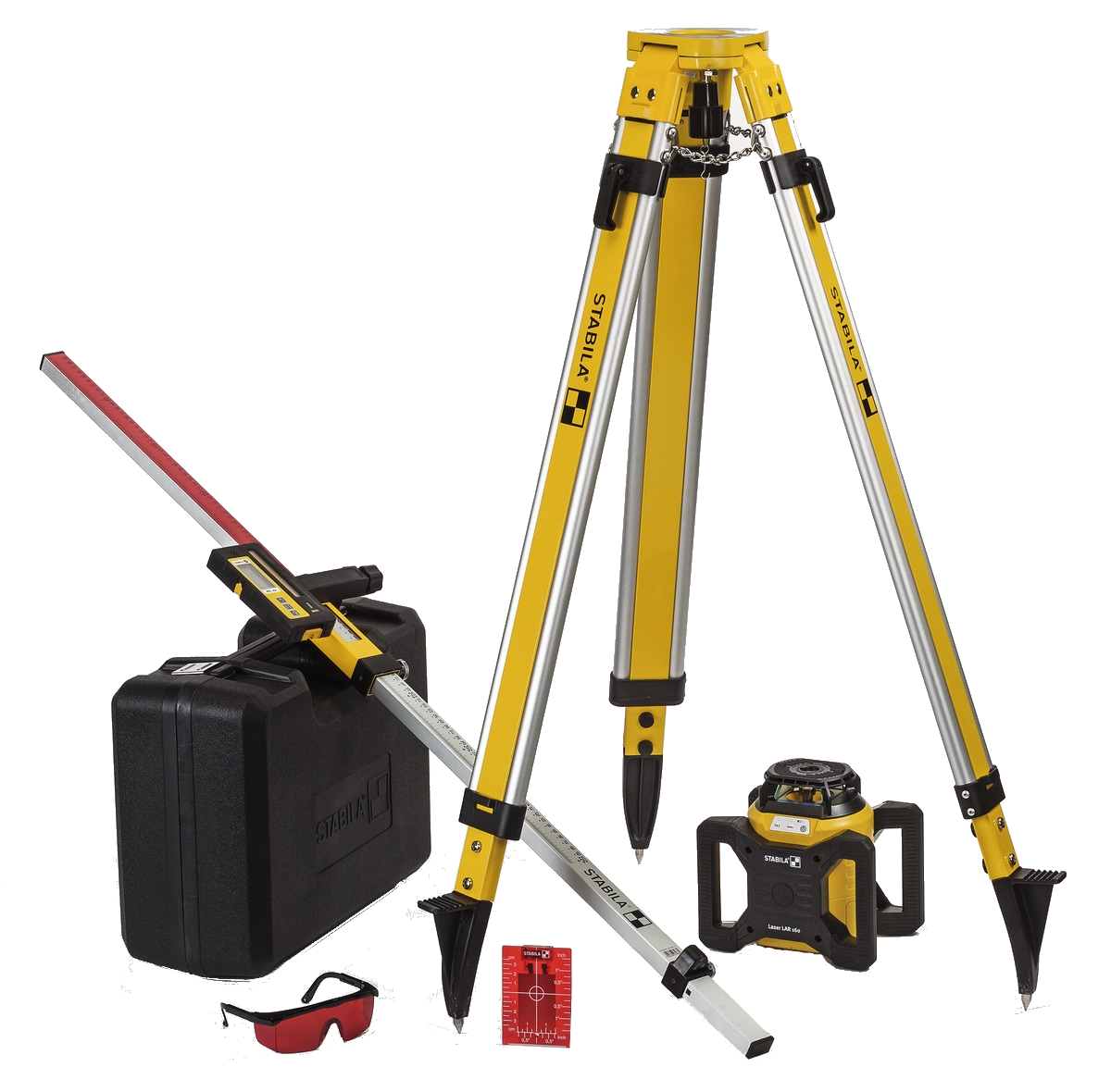

Kit Includes

  • LAR160 Laser

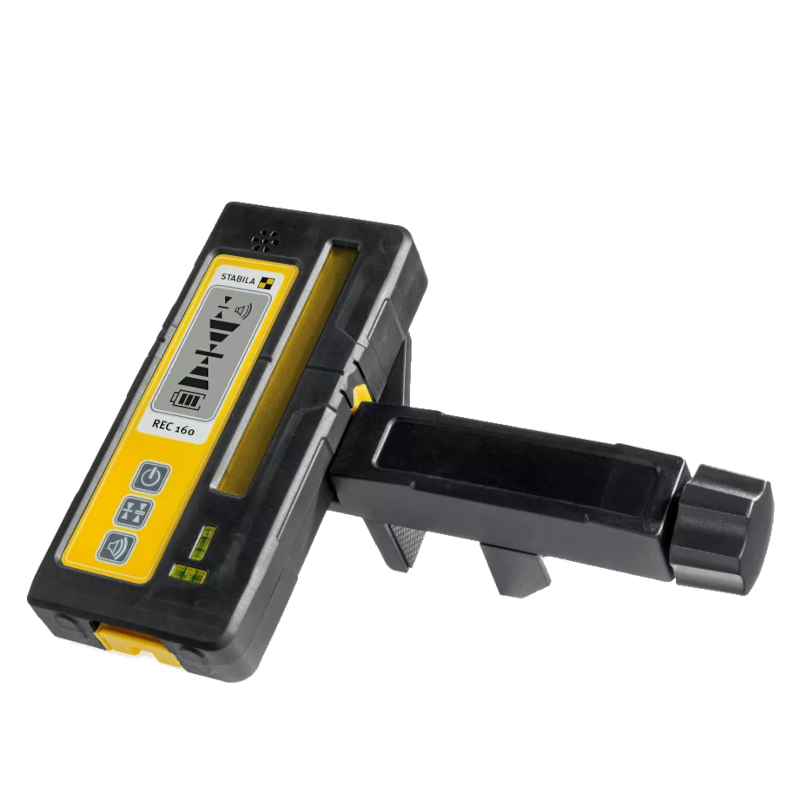

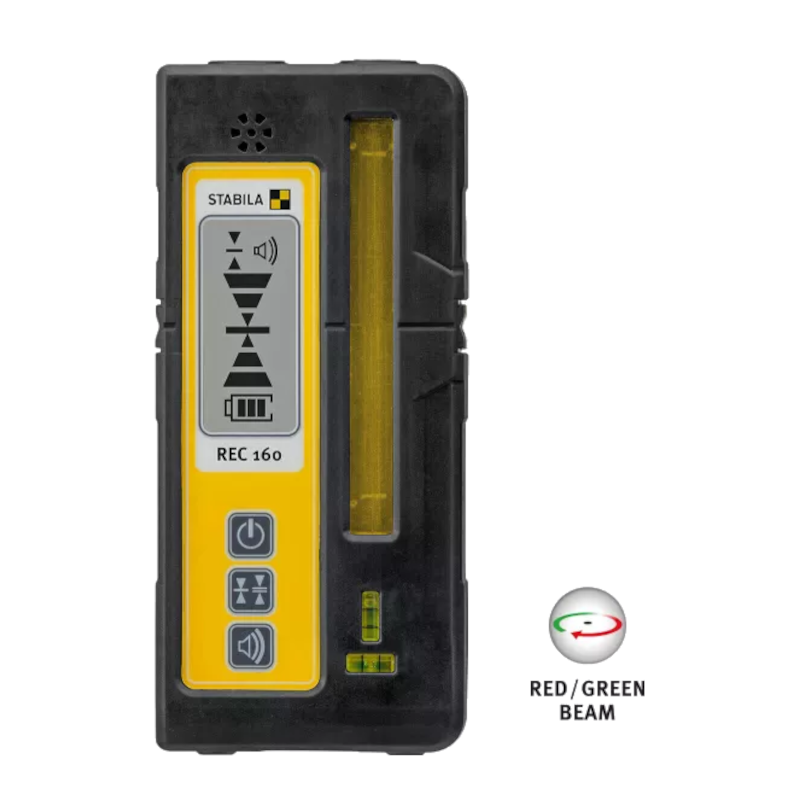

  • REC 160 RG Analog receiver
  • BST-S construction tripod
    Aluminium construction tripod for use outdoors. Tripod legs have spikes to ensure good stability. Rapid locking mechanism for aligning the tripod quickly, even on uneven ground. Spread stopper with high-quality chain. Carry pouch for easy transport. Height-adjustable: 100 cm to 160 cm. 5/8“ threaded screw
  • Staff - NL levelling rod
    Anodised aluminium levelling rod for use when levelling with a laser and receiver over great distances. Measuring rod with adjustment sliders for quick and trouble-free height determination. Deviations of ± 50 cm from the reference plane can be read quickly and easily (reference height approx. 80–190 cm). Printed scale in mm. Extendable up to 240 cm (transport height: 130 cm).
  • Target plate
    Target plate with magnetic holder and cross-hair for aligning the laser vertically and horizontally with a target point. For suspended ceilings, the target plate can be attached to metal rails with the magnetic holder. Improves the visibility of the laser beam.
  • LB laser goggles
    Laser goggles increase the visibility of the laser beam (by up to 50%). No protective laser goggles.

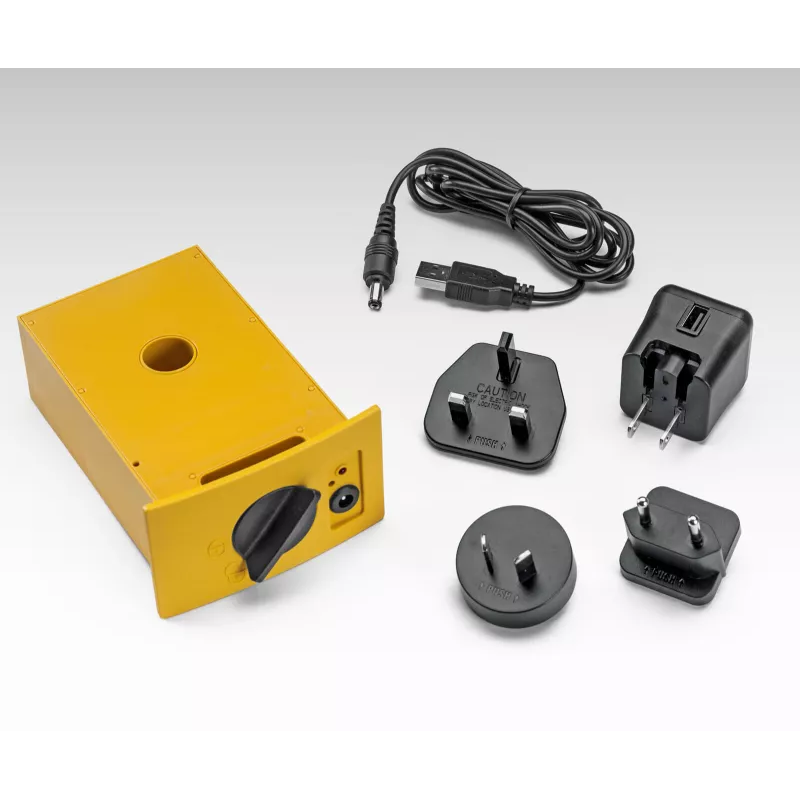

  • LAR160 Li-ion rechargeable battery unit
    The LAR160 Li-ion rechargeable battery unit for STABILA LAR 160 and LAR 160 G rotation lasers is included. High-performance 3.7 V and 7200 mAh lithium-ion rechargeable battery for long periods of work — operating time of approx. 30 hours from one battery charge. Fast charging — ready in around 6 hours. Mains adapter with four country-specific interchangeable adapters: approved for the European Union, the USA, Canada, Australia and New Zealand.
  • Hard carry case

Key Features

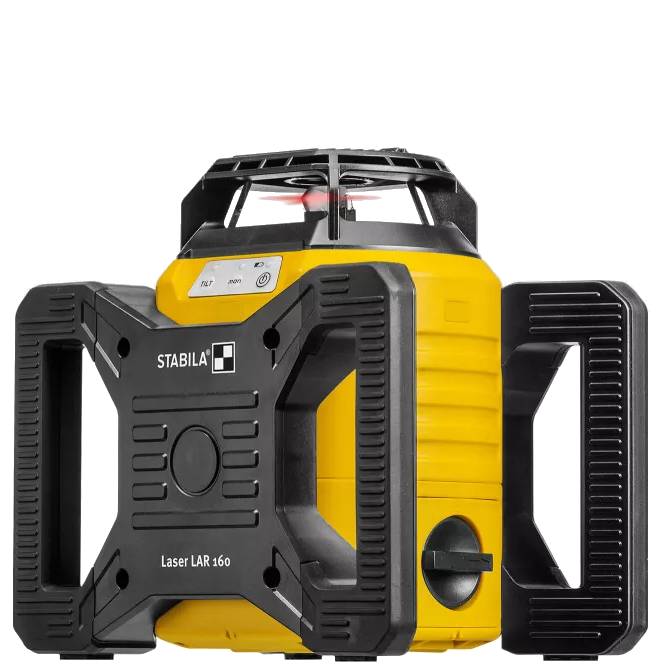

  • Fully automatic, motor-driven rotation laser – high levelling accuracy of ± 0.1 mm/m, fast self-levelling function within 20 seconds.

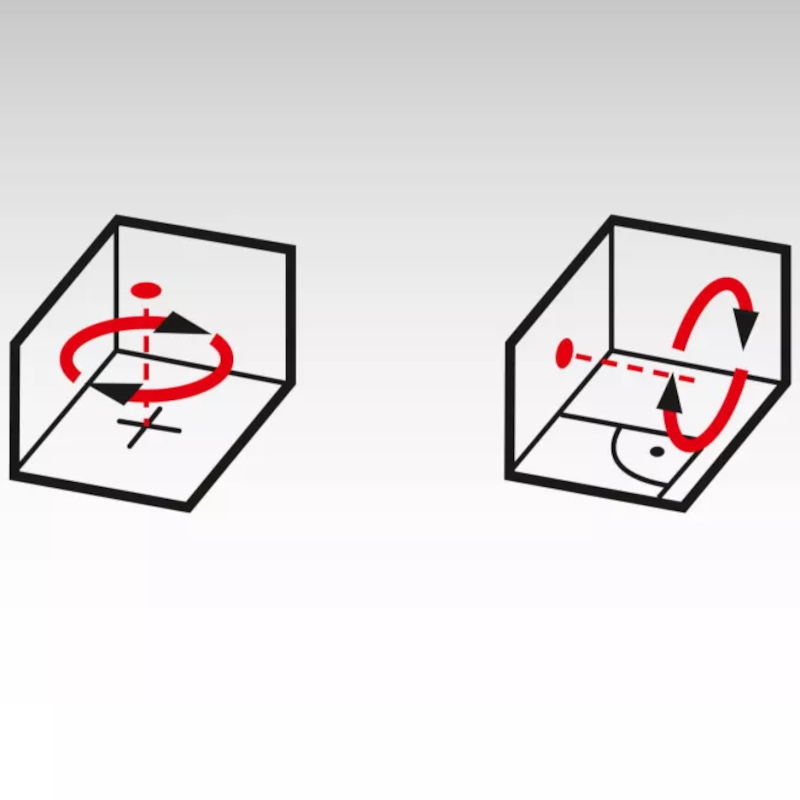

  • Four laser functions for versatile use – horizontal and vertical rotation, plumb-line function and right angle (90°) in vertical operation.

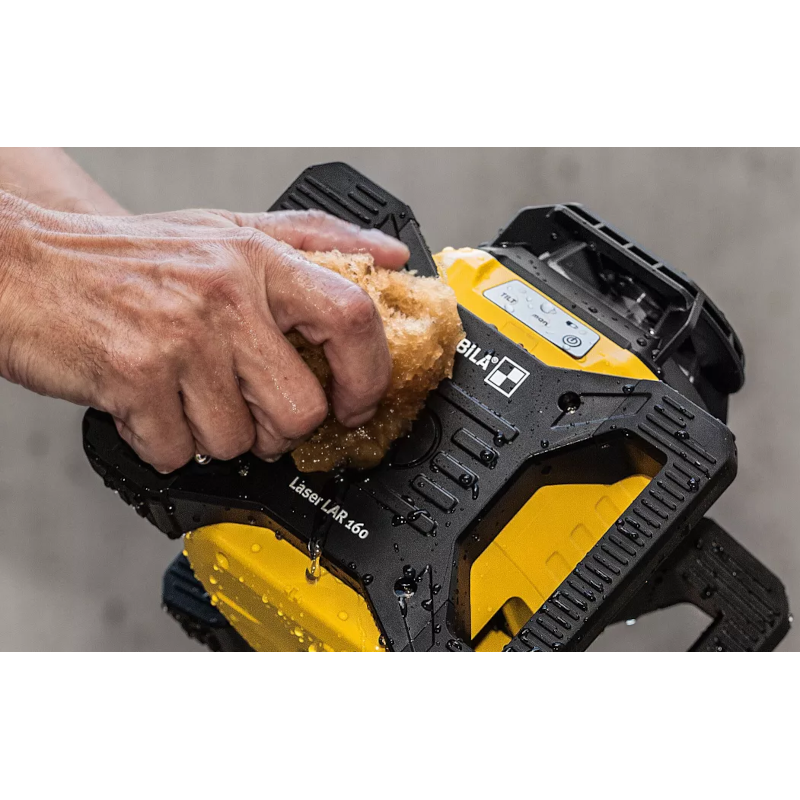

  • Protection class IP 65 – dustproof and waterproof.
  • Shock-absorbent STABILA soft grip casing provides protection against impacts – the stable housing cover also protects the laser optics.
  • Easy to use via three control buttons – on/off, tilt mode, manual mode.

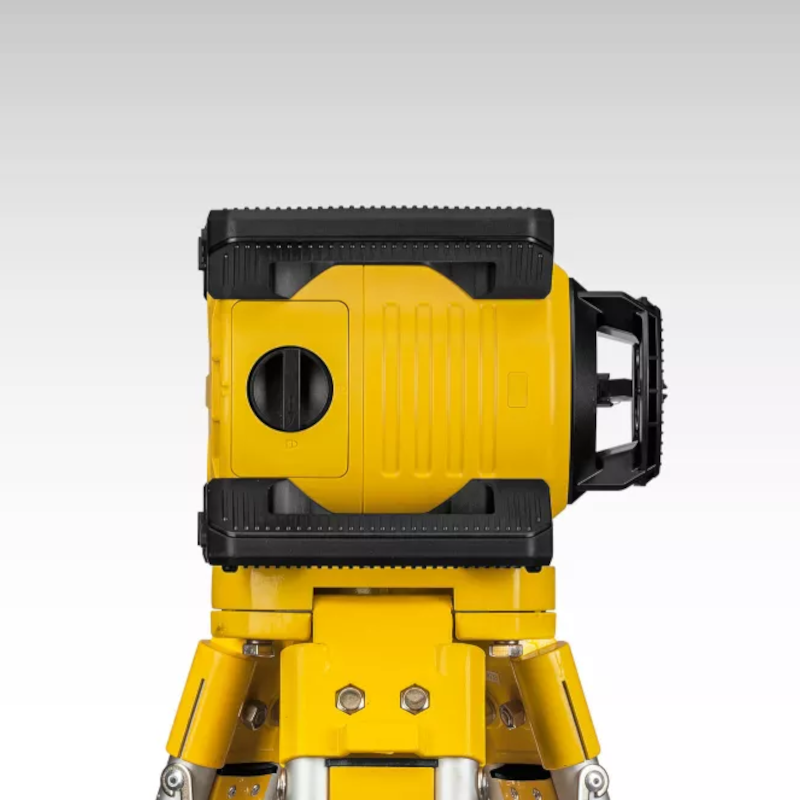

  • Battery drawer – easy replacement, even directly on the tripod.
  • Large working area with REC 160 RG set receiver – up to 600 m in diameter.
  • Two 5/8" threads integrated in the housing for horizontal and vertical use on a tripod.
  • Target plate with magnetic holder and cross-hair.
  • Laser goggles – increase visibility of the laser beam by 50%.
  • Stable carrying case for easy transport and safe storage.


  • Laser receiver for accurately determining the beam position of rotation lasers with red or green laser diodes – even over large distances.
  • Visual display: Arrow symbols on the display indicate the position of the receiver relative to the reference plane of the laser.
  • Acoustic guidance can be activated with beeping tones for which the volume can be set.
  • Two sensitivity levels can be set for application-oriented work – “fine grade” with a sensitivity of ± 1 mm or “coarse grade” with a sensitivity of ± 3 mm.
  • Waterproof and dustproof in accordance with protection class IP 66.
  • Holder for attaching to levelling rods.
  • Battery status display.
  • Height of receiving area: 80 mm.
  • Battery life: 24 hours.


  • Laser class: 2
  • Output: < 1 mW
  • Laser wavelength: 635 nm
  • Self-levelling range: +/-5°
  • Levelling accuracy: +/-0.10 mm/m
  • Diameter of working area for set receiver: 600 m
  • Operating life: 40 h
  • Battery type: D
  • Protection class: IP 65
  • Tripod connection: 5/8"

Additional Info

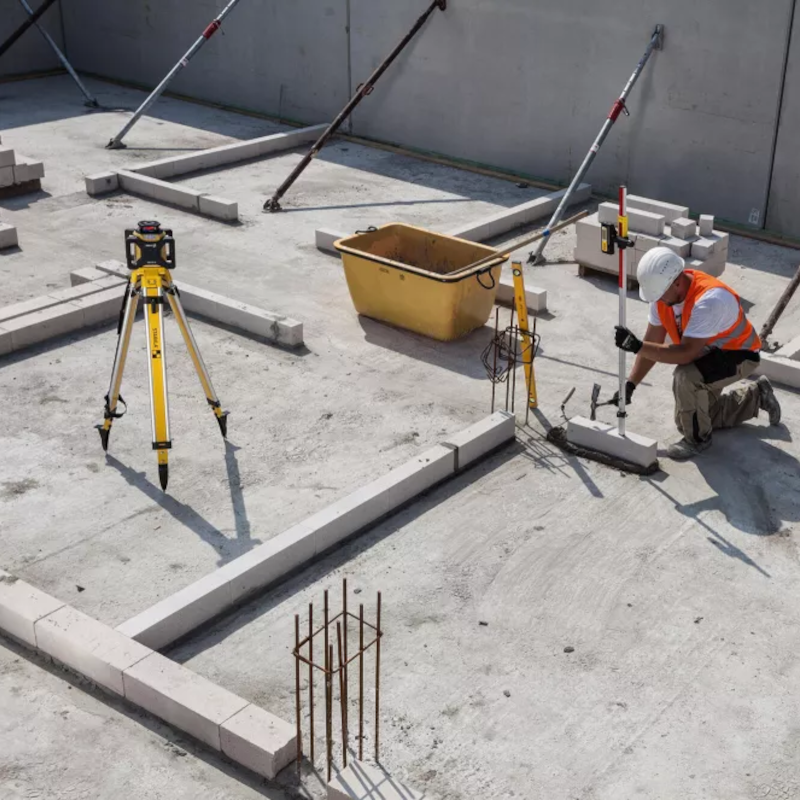

Application examples

  • In bricklaying – creating the levelling layer.
  • In reinforced concrete construction – concreting foundations or constructing batter boards.
  • In metal construction – aligning and positioning steel beams in industrial building construction.
  • In gardening and landscaping work – laying out garden areas, paths and paving.
  • In carpentry and wood construction – attaching façade cladding.
  • In civil engineering and pipeline construction – installing pipelines.
