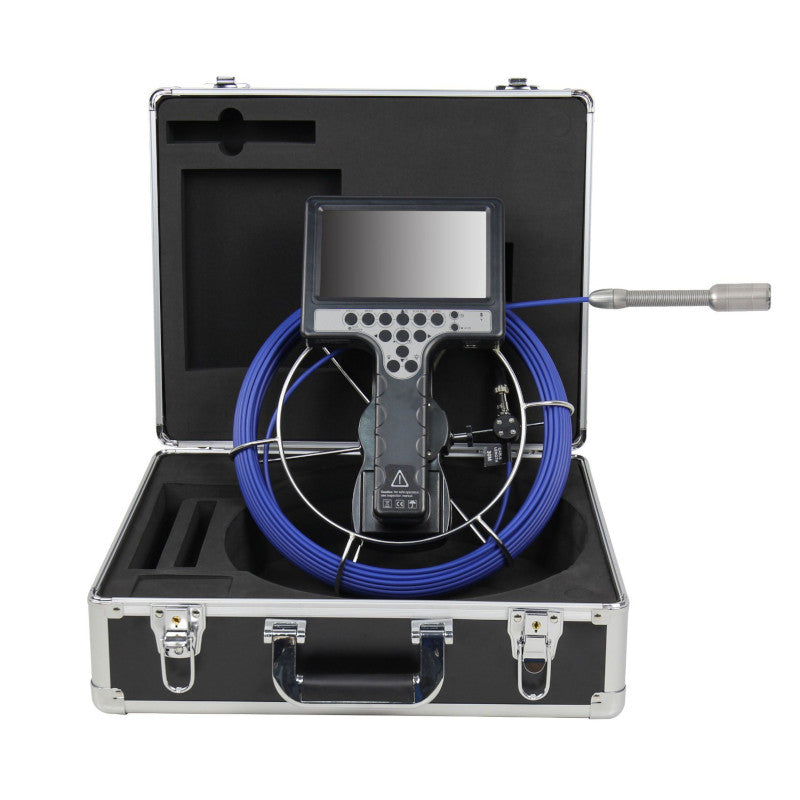

Handheld Pipe Camera System with 23mm Stainless Steel Camera

Handheld Pipe Camera System with 23mm Stainless Steel Camera


Regular price €1,495.00EX VAT (€1,838.85 INC VAT)
Regular price WAS EX VAT
Sale price NOW €1,495.00EX VAT (€1,838.85 INC VAT)
YOU SAVE €-1,495.00 (%) Sold out

Handheld Pipe Camera System with 23mm Stainless Steel Camera

Technology: Pipe Inspection Camera
Style: Pipe Inspection Camera
Type: Pipe Inspection Camera
Sensor: CMOS
HDMI Format: MP4
Horizontal Resolution:


Full Description

  • Model NO.: WPS-B1-C23
  • Kind: Pipe Inspection Camera
  • Certification: CE, FCC, RoHS, EMI/EMC
  • Feature: Waterproof / Weatherproof, High Definition, Mini SizeEffective Distance:10-30m
  • Sensor Size: 1/4 inch
  • Camera Head Diameter: 23*120mm
  • Viewing Angle: 105 Degree
  • Waterproof: Yes
  • Camera Material: Stainless Steel
  • LEDs: 12 PCS
  • Cable Length: 20m/30m/40m
  • DVR: YesCarry Case: Aluminum Alloy
  • Screen: 7 Inch
  • Warrenty: 1 Year
  • Trademark: WOPSON
  • Transport Package: Carton Package
  • Specification: 460*270*560mm


Stainless steel & waterproof 23mm camera
Camera Size Φ 23mm*120mm
Camera Housing Material Stainless steel
Camera Lens Material  Sapphire glass
Sensor Size 1/4 inch
Total Pixels PAL:720*576   NTSC:720*480
View Range 120°
Illumination 12PCS white LEDS
Waterproof  Level IP68
Camera Work Current 100MA
Camera Power Supply DC 12V
Operating Temperature -10°C to +50°C

7 inch TFT Color monitor
Monitor Size 7 inch TFT color monitor
Pixels 1440*234
Monitor Power Supply DC 12V
OSD Language English
Operating Temperature -10°C to +50°C
Up, down left, right adjustable
Shock absorber hinges also acts as sun visor
16:9 & 4:3 model
Waterproof Connector

20m/30m/40m push rod cable
Cable Size Φ320mm*110mm(H)
Wire Material Fiberglass rod
Fiberglass Length 20m(standard) & as your requirement
Fiberglass Diameter Φ4.8mm
Fiberglass Color  Yellow / Blue

Black Al Carry Case
Case Size L480*W415*H200mm
Case Material Fire board & Aluminium alloy
Empty Case Weight 3.4KG
Case Color Black
