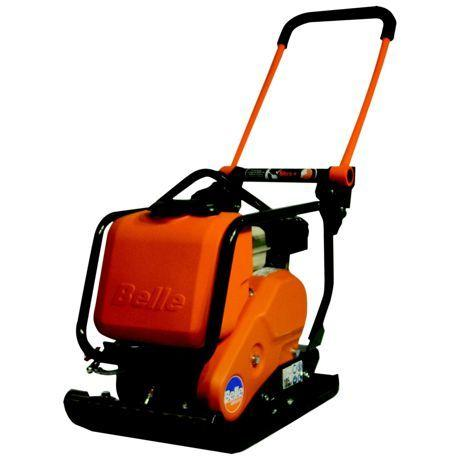

Belle PCX 13/40 Honda Heavyweight Combination Plate Compactor with Water Tank PCX 13/40-WT
Heavyweight professional compaction plates with low HAV and very high performance compaction. Designed with a shorter baseplate to offer improved compaction, manoeuvrability and finish.
- Foldable mounted guide handle offers superior manoeuvrability and can be lowered to operate under obstacles and close to form work.
- Reinforced centrifugal clutch ensures longer belt life, and simplified belt adjustment
- Lifting points and front lift cage offer easier loading and unloading for operator convenience
- Large capacity water tank is built into the protective frame
- Angled holes on spray bar allow complete water coverage over the full width preventing any asphalt pick-up on plate bottom
- The spraybar is fully protected from damage, easily positioned,with integral paving pad clamp points
- Optional compact wheelkit, easily fitted and removed
- Life lubricated vibration bearings
Water Tank included.
FC4000EW With water kit
|FC4000E Without water kit|
|Model||PCX 13/40||PCX 13/40|
|Engine Power (hp/kW)||Honda Petrol GX120 4/3||Honda Petrol GX120 4/3|
|Plate Size WxL (mm)||400 x 606||400 x 606|
|Static Pressure (kg/m2)||542||520|
|Centrifugal Force (kN)||13||13|
|Travel Speed (m/min)||20||20|
|Vibration (m/sec2) / usage (hrs)||3.2 / 4.53||3.2 / 4.53|
