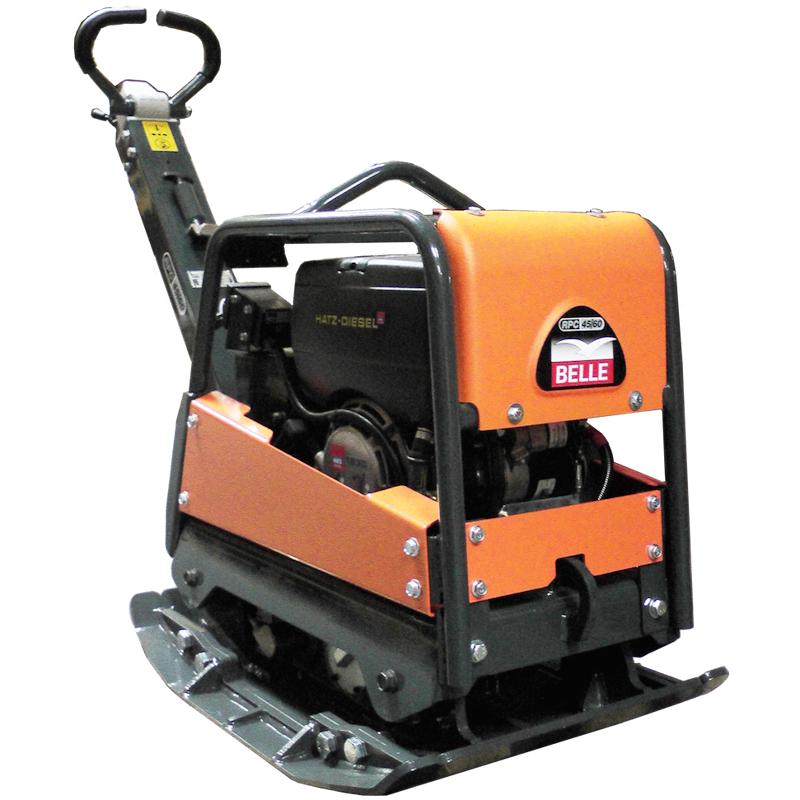

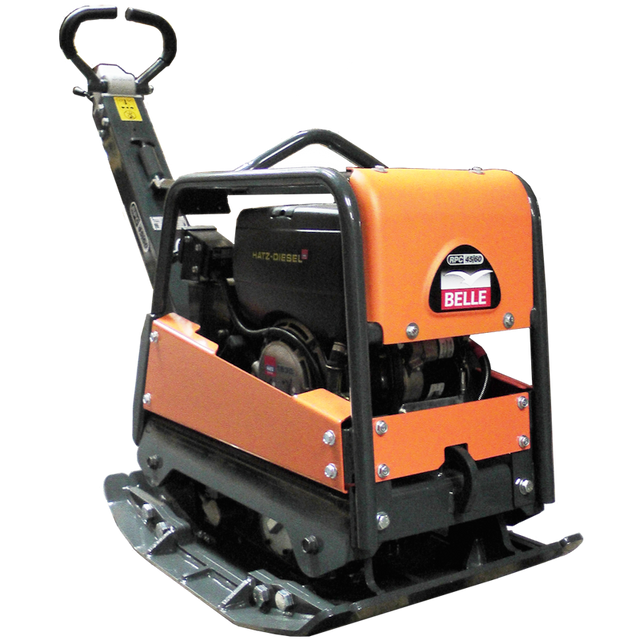

Belle RPC 45 Reversible Plate Compactor

Belle RPC 45 Reversible Plate Compactor

(RPC 45)

CALL FOR PRICE

Call Us for Details on 061-951120 or 086-3962626

Medium size heavy duty forward and reverse plate compactor for soil applications. Ideally used for compaction in backfill in pipe and cable trenches as well as road repair and maintenance work. Speed and compaction depth are adjusted through hydraulic servo control of the eccentric element. Design includes strong wrap around frame that will stand severe shock and also protects vital parts of the machine.

Key Features

  • Compact design
  • Total plate width of 600mm, this model is equipped with 2 quick release extension plates to permit versatility in applications (Extensions 2 x 75 mm)
  • Engine options of petrol or diesel. RPC45/60 is available with diesel electric start as an option
  • Optimized compaction depth is achieved by a high frequency vibrating element
  • Excellent ergonomics has been achieved by reducing hand arm vibrations
  • Belle use the specially designed operator handle which is easy to operate even in difficult curves
  • Foldable handle with locking mechanism to have simplified transport and storage

Specification

Ref 161.9.005 161.9.004
Model RPC 45/60 RPC 45/60D
Engine Power (hp/kW) Honda GX270 Petrol - 9 / 6.7 Hatz 1B30 Diesel - 6.3 / 4.7
Plate Size WxL (mm) 600 x 839 600 x 839
Centrifugal Force (kN) 45 45
Frequency (Hz) 70 70
Weight Class 300 300
Weight (kg) 275 291



RPC 45/60DE Electric start

Ref 161.9.068 161.9.076
Model Orange Yellow
Engine Power (hp/kW) Hatz 1B30 Diesel - 6.3 / 4.7
Plate Size WxL (mm) 600 x 839
Centrifugal Force (kN) 45
Frequency (Hz) 70
Weight Class 300
Weight (kg) 303
