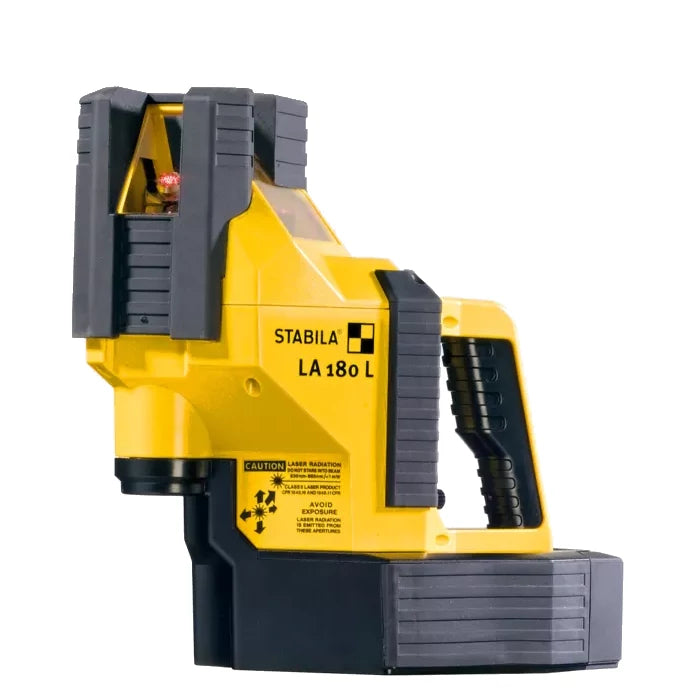

Stabila LA 180L Squaring-Off Laser Level

Stabila LA 180L Squaring-Off Laser Level

(LA 180L)

£1,274.00EX VAT (£1,567.02 INC VAT)
WAS EX VAT
NOW £1,274.00EX VAT (£1,567.02 INC VAT)
YOU SAVE £-1,274.00 (%) Sold out

Use the Squaring-Off Laser Level for laying out to 300ft Cut your labor costs by 50% .

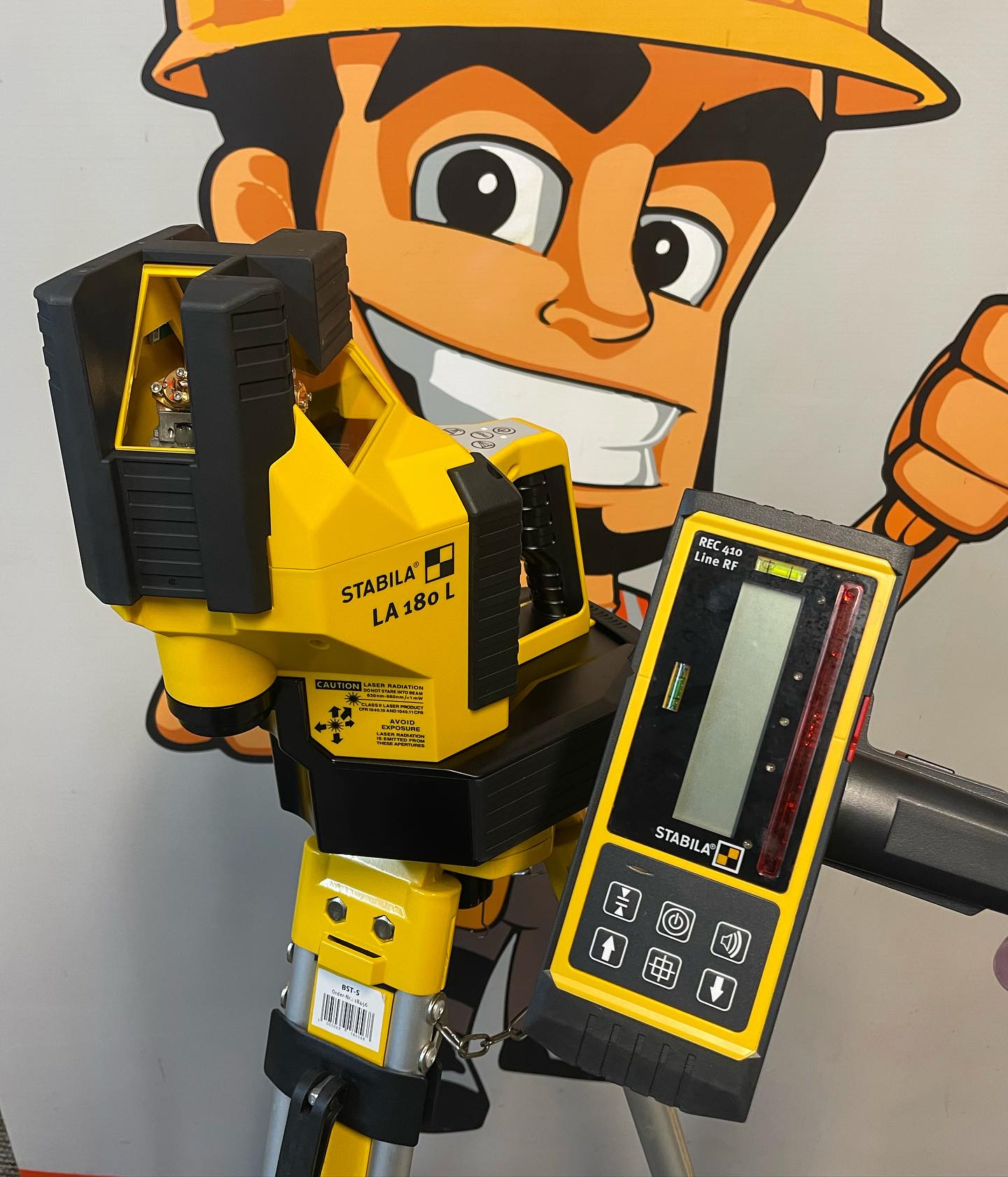

Fully automatic, long range layout. Auto alignment allows you to layout square with only one person in just seconds. Layout over ranges above 50ft is a time-consuming and high risk job. When layout errors occur high follow-up costs will be the result. The LA 180 L self-leveling multi-line laser allows you to layout greater than 20ft up to 300ft fast and accurately. The REC 410 Line RF receiver controls the LA 180 L using the STABILA wireless AUTO ALIGNMENT technology. One press of a button and the laser adjusts automatically to the position of the receiver.

Key Features

  • Self-levelling multi-line laser for precision layout
  • AUTO ALIGNMENT function: Receiver automatically controls the positioning of the laser at distances of up to 150ft – fully automatic axis transfer and creation of right angles on floors, walls and ceilings, all at the same time. Precise alignment without losing the reference point.
  • Pulsed laser lines for precise measurements with the receiver (up to 300ft) indoors and outdoors.

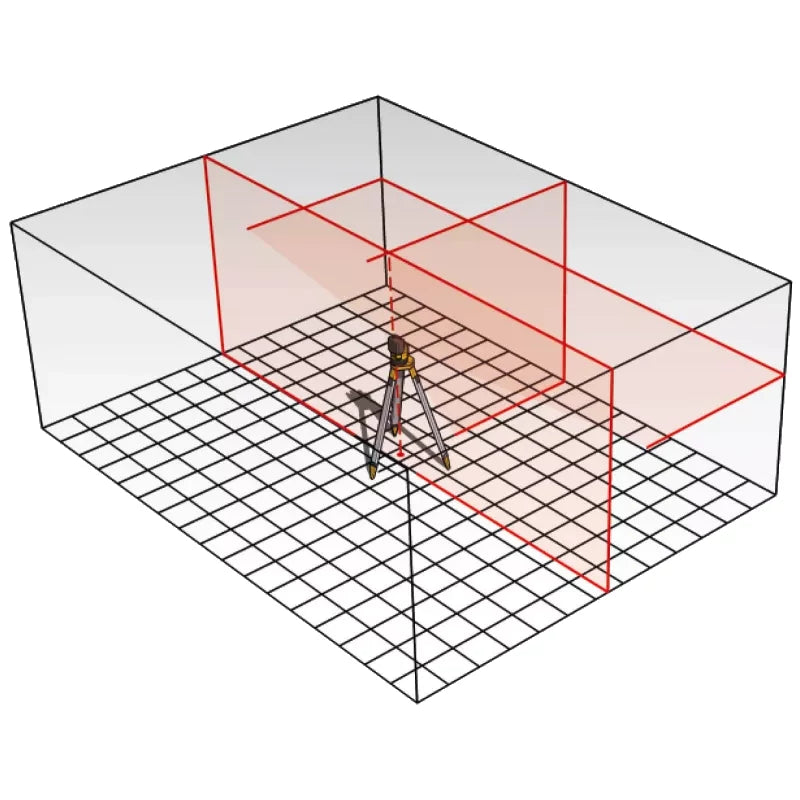

  • Versatile: 3 vertical lines, 1 horizontal line and plumb-line function.
  • Extra sharp, easy-to-see lines for fast and efficient work directly on the laser line – visible range up to 100ft indoors.
  • Unique housing shape for positioning in room corners and over edges (e.g. concrete slab) – rapid checking of right angles.
  • 5/8-11 tripod mount.
  • Includes: Laser, receiver with bracket, laser enhancement glasses, magnetic red target cards/plates, batteries, hard shell case.
  • Optional: Rechargeable battery pack, brackets for using the laser with batter boards and forms.

Specification

  • Laser class: 2
  • Output: < 1 mW
  • Laser wavelength: 635 nm
  • Self-levelling range +/-: 5°
  • Levelling accuracy +/-: 3/32 in @ 100 ft
  • Line straightness +/-: 1/8 in @ 100 ft
  • Laser beam accuracy (down) +/-: 3/32 in @ 100 ft
  • Measuring range of set receiver: 328 ft
  • Measuring range of visible point: 65 ft
  • Measuring range of visible line: 65 ft
  • Operating life: 20 h
  • Protection class: IP 54
  • Tripod connection: 5/8"-11

Additional Info

Applications

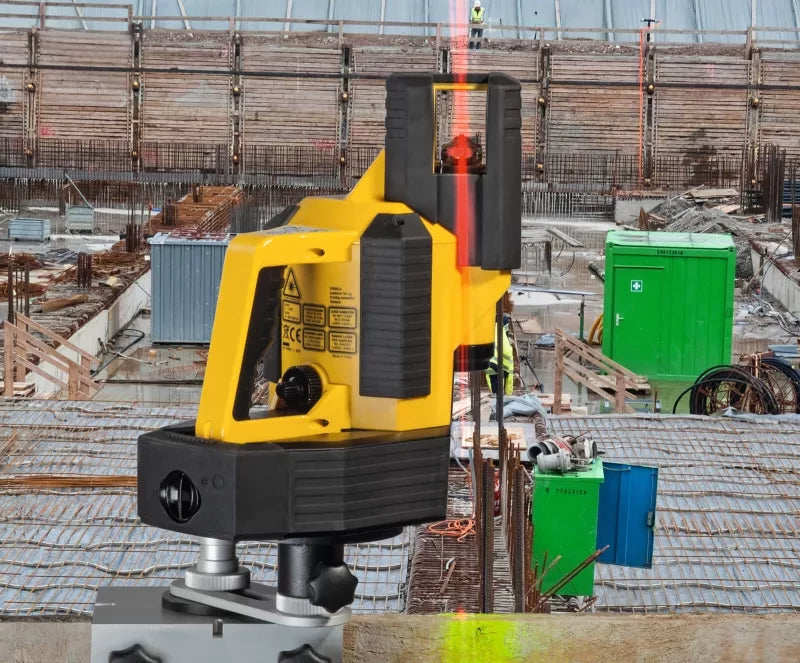

This is a fast and precise layout tool. It is designed for applications >20ft up to 300ft.
Commercial construction, HVAC, masonry, concrete and top end landscape jobs.

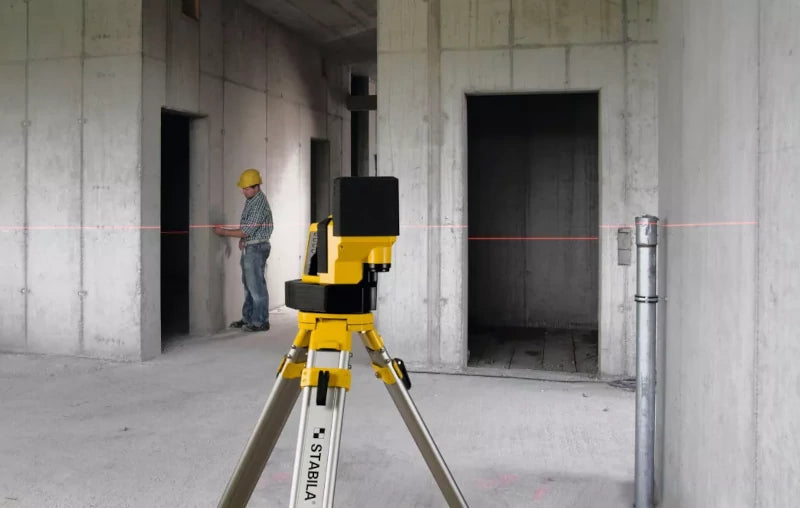

Drywall construction – suspending ceilings, positioning interior and partition walls within a range of 300ft.

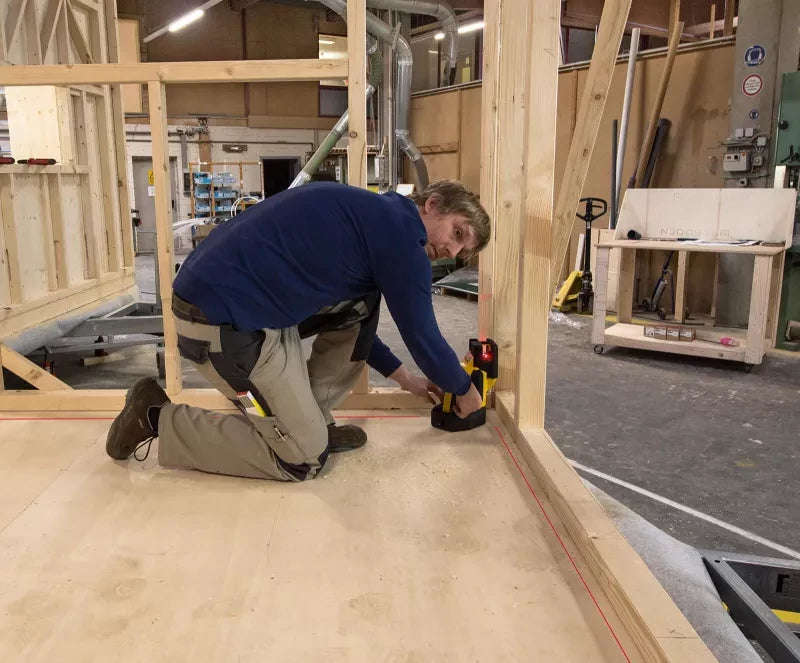

Framing - layout wall positions at the push of a button. Quickly establish square, even when the slab or foundation you're working on is out of square.

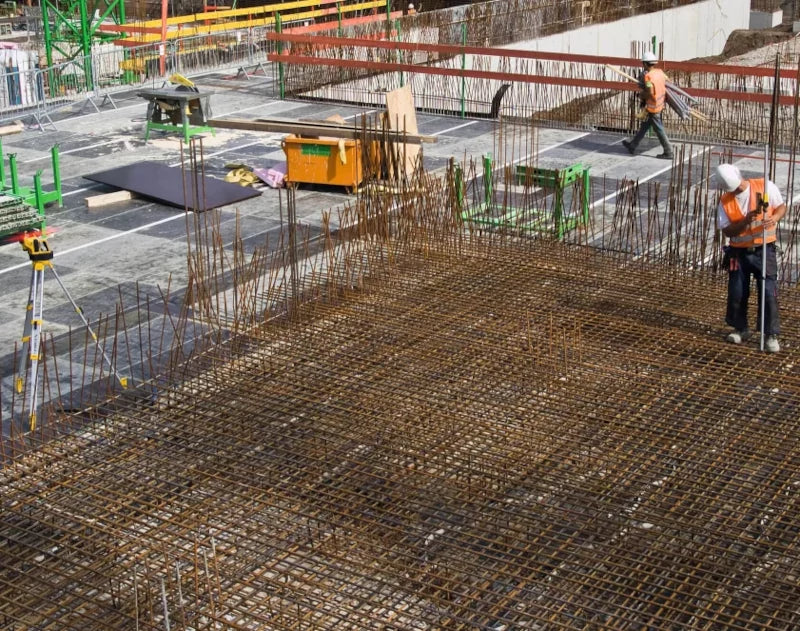

Concrete – Layout forms perfectly straight and square.
Optional laser and receiver mounts available for most re-usable forming systems.
